VRF Uneven Temperatures: Why Some Zones Never Reach Setpoint

When a tenant on the south side of a Midtown tower is running 78 degrees while the north side sits at 71, the building staff usually hears about it before anyone looks at the system. Uneven temperatures across VRF zones are one of the most common complaints we get called for, and they almost never trace back to a single broken part. The system is usually working. It just isn’t doing what someone expected it to do.

Getting zones back in balance means understanding why VRF behaves differently than the central air it replaced. Here is what we check, in roughly the order we check it.

Zone control is not the same as zone independence

VRF gives you per-zone control, but every indoor unit on a branch is still pulling from a shared refrigerant loop and a shared outdoor condenser. When the system is in cooling mode and one zone calls for heat, that zone loses unless you have a heat recovery system that can do both at once. Most Manhattan buildings were spec’d with heat pump VRF, not heat recovery, because it costs less up front. That decision shows up years later as comfort complaints in shoulder seasons and in buildings with a sunny side and a shaded side.

So the first question is not what’s broken. It’s whether the system was ever designed to hold every zone at setpoint at the same time. A north-facing conference room and a south-facing corner office have very different loads at 3pm in July, and a single-mode system has to pick one.

Airflow and indoor unit problems come first

Before anyone touches refrigerant, check the obvious. A zone that never reaches setpoint often has a dirty filter, a blocked coil, or a fan running at the wrong speed. In commercial spaces where ceilings get reconfigured for new tenants, we regularly find supply grilles that got drywalled over or return paths that someone blocked with shelving.

Indoor units also drift out of calibration. A return air sensor reading high because it sits in a dead air pocket near a light fixture will tell the system the room is warmer than it is, and the unit will overcool. The opposite happens when a sensor sits in a draft. These are quick to find and cheap to fix, and they explain a surprising share of the calls we run.

Refrigerant distribution and piping length

This is where VRF gets unforgiving in tall buildings. The zones farthest from the condenser, or highest above it, are the ones that struggle. Long piping runs and significant vertical lift change how refrigerant and oil move through the system, and the units at the end of the line are the first to underperform when charge is even slightly off.

If the zones that can’t hold setpoint are clustered at one end of a branch or on the upper floors, that pattern matters. A slow refrigerant leak, an oil return problem, or an undersized line set installed during the original build will all show up as a few specific zones falling behind while the rest of the building is fine. We see this often on systems installed in the 2012 to 2016 wave that are now ten to fourteen years old, where a small leak has been quietly degrading capacity for a season or two.

Controls, BMS integration, and bad setpoints

Plenty of uneven-temperature complaints are controls problems, not mechanical ones. When VRF is tied into a building management system, conflicting schedules and master controller logic can override what the local thermostat is asking for. We have walked into buildings where a zone was capped at a narrow setpoint range in the BMS that nobody on site knew about, or where a master on/off schedule was shutting a branch down before the space had recovered from the overnight setback.

Occupant behavior plays in too. A tenant who tapes over a sensor or props a fan against an indoor unit is fighting the system, and the controls will fight back. Part of a real diagnosis is pulling the runtime and error history from the controller, not just standing in the room with a thermometer.

How NYC buildings make this worse

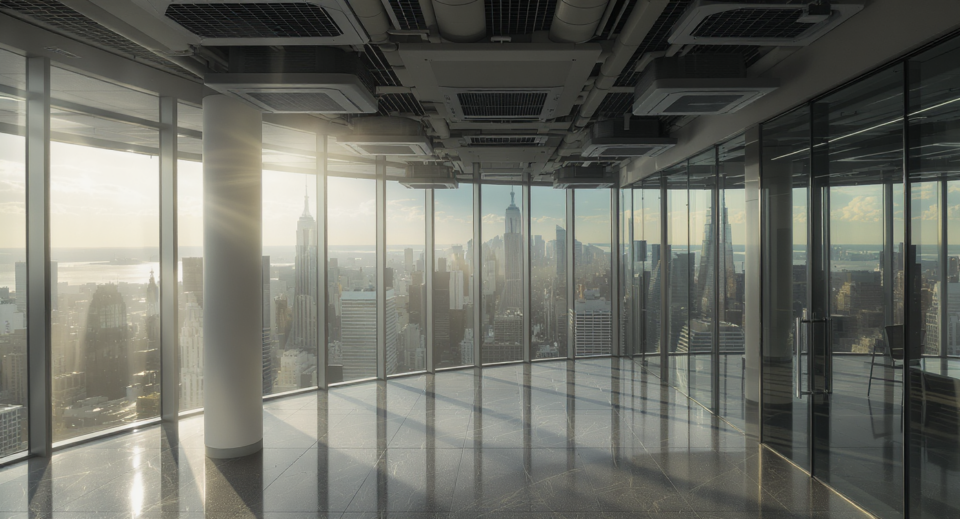

Glass curtain wall construction, common in newer Class A office towers, drives huge solar gain on the sunny exposures and almost none on the shaded ones. A pre-war building with deep masonry walls behaves the opposite way, holding heat long after the load has shifted. Mixed-use buildings stack a restaurant kitchen, retail at grade, and residential above, each with its own load profile on the same system. None of this is a defect. It’s the reason a one-size setpoint strategy never holds across a real NYC building, and why zone balancing here takes more than resetting a thermostat.

What a real fix looks like

Balancing a VRF system is a process, not a part swap. It usually means verifying refrigerant charge across the whole system, checking oil return on the high and far zones, confirming sensor placement and calibration, reviewing the BMS logic and schedules, and in some cases rezoning or adding controls capability the original install skipped. On systems past the ten year mark, it’s also the right moment to find out whether a leak or a tired compressor is the real reason a few zones gave up.

If parts of a building you manage never quite reach setpoint and you’re tired of fielding the same complaints every cooling season, that’s worth a proper look. Mountain Mechanical has been balancing and servicing VRF systems across Manhattan since they were first installed, and we know what these patterns usually mean. Give us a call at 833-504-HVAC and we’ll figure out which one you’re dealing with.
